cold roller Steel Two Wave W Beam Highway Guardrail Roll Forming Making Machine, Metal Guardrail Sheet Making Machine

FOB Reference Price:Get Latest Price
  • 1 - 1 Sets
    $85,000.00
  • >=2 Sets
    $80,000.00
Shipping:
Support Sea freight
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Production Capacity:
8-12m/min
Power(W):
30kw
Certification:
CE/ISO9001
Condition:
New
Place of Origin:
Liaoning, China
Brand Name:
Haitian
Model Number:
310
Voltage:
380V 50Hz 3phases
Weight:
15 Tons
Use:
highway of the tailgate
Dimension(L*W*H):
15.0m*1.5m*1.2m
Tile Type:
Steel
color:
all on your demand
Controlling system:
CNC
Hydraulic pressure:
18-20MPa
Main motor power:
30KW
product name:
Two wave W Beam Guard Rail Highway making machine
Thickness of the panel:
3.5-4.0MM
Material of rollers:
40Cr
Material of cutting blade:
Cr12
The PLC:
China brand
HS:
8455229090
Warranty:
2 Years
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude packing for cold roller Steel Two Wave W Beam Highway Guardrail Roll Forming Making Machine, Metal Guardrail Sheet Making Machine
Port
dalian

cold roller Steel Two Wave W Beam Highway Guardrail Roll Forming Making Machine, Metal Guardrail Sheet Making Machine

Product Description

What is the parameter?

Technical Datas  Two wave W Beam Guard Rail Highway making machine

1

Material Width

500-1000mm

2

Effective Width

480-680mm

3

Thickness of Coil

3-4mm

4

Application

Highway Guardrail

5

Estimated Dimension

15000mmX1800mmX1200mm

6

Total Weight

15 Tons

7

Main Power

30 KW

8

Decoiler

Manual or Hydraulic Decoiler

9

Inner Diameter

508mm

10

Outer Diameter

1200mm

11

Loading Weight

15T

12

Forming Speed

6—10m/min

13

Forming Station

12-15

14

Bracket

Welded with 36 # I-steel

15

Material of Shaft

High Grade 45# Steel with 1st Rough Finished and

then 2th Refined Finished

16

Diameter of the Roll

100mm

17

Material of Roller

High Quality

CGr15 Quenched HRC58-62 °

18

Processing Technology

Rough Processing ---Refined Processing--Hard Chromium Plating.

19

Material of Rack

Complete Welded Structure of A3 Steel

Plate 20 mm Thickness

20

Transmission

Chain or Gear Box

21

Material of cutting blade

Cr12 with Quenched Treatment 60-62 °

22

Cutting system

Hydraulic Stop or Tracking Cutting

23

Voltage

380V/50HZ/3 Phase or as Customer Require

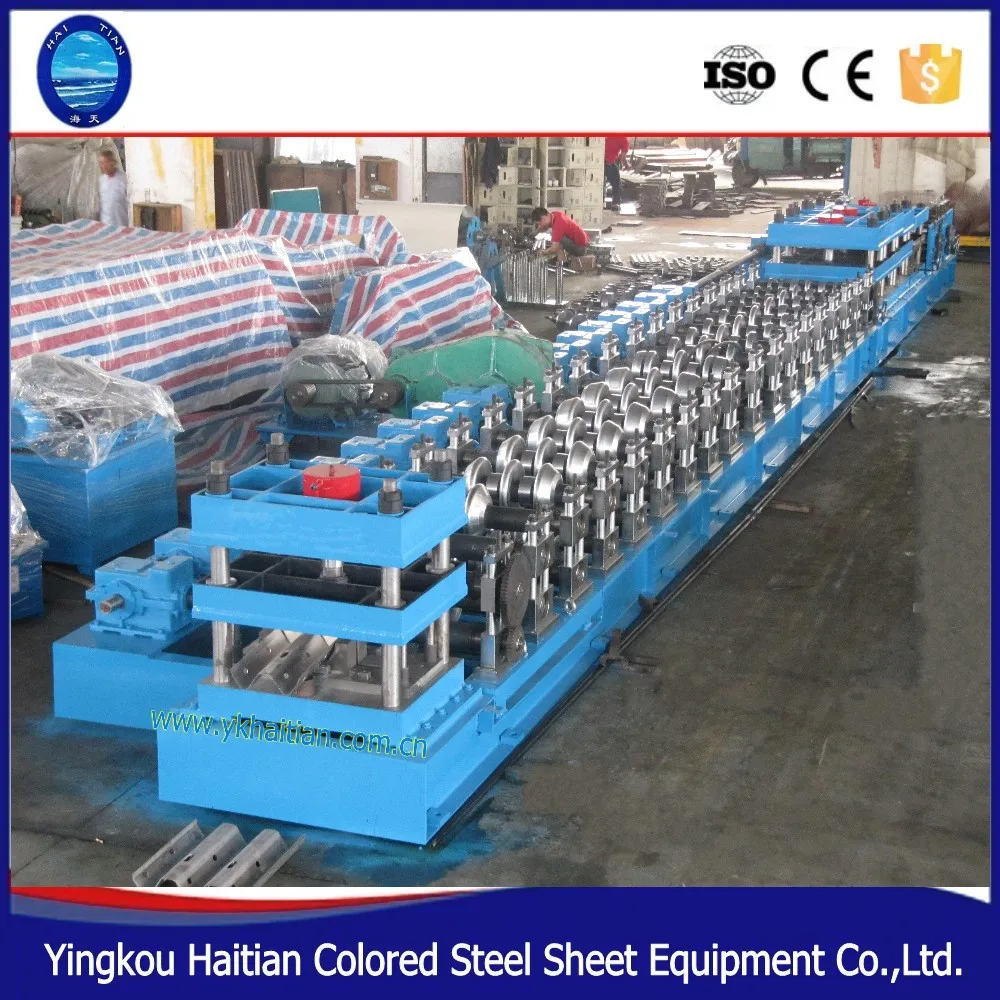

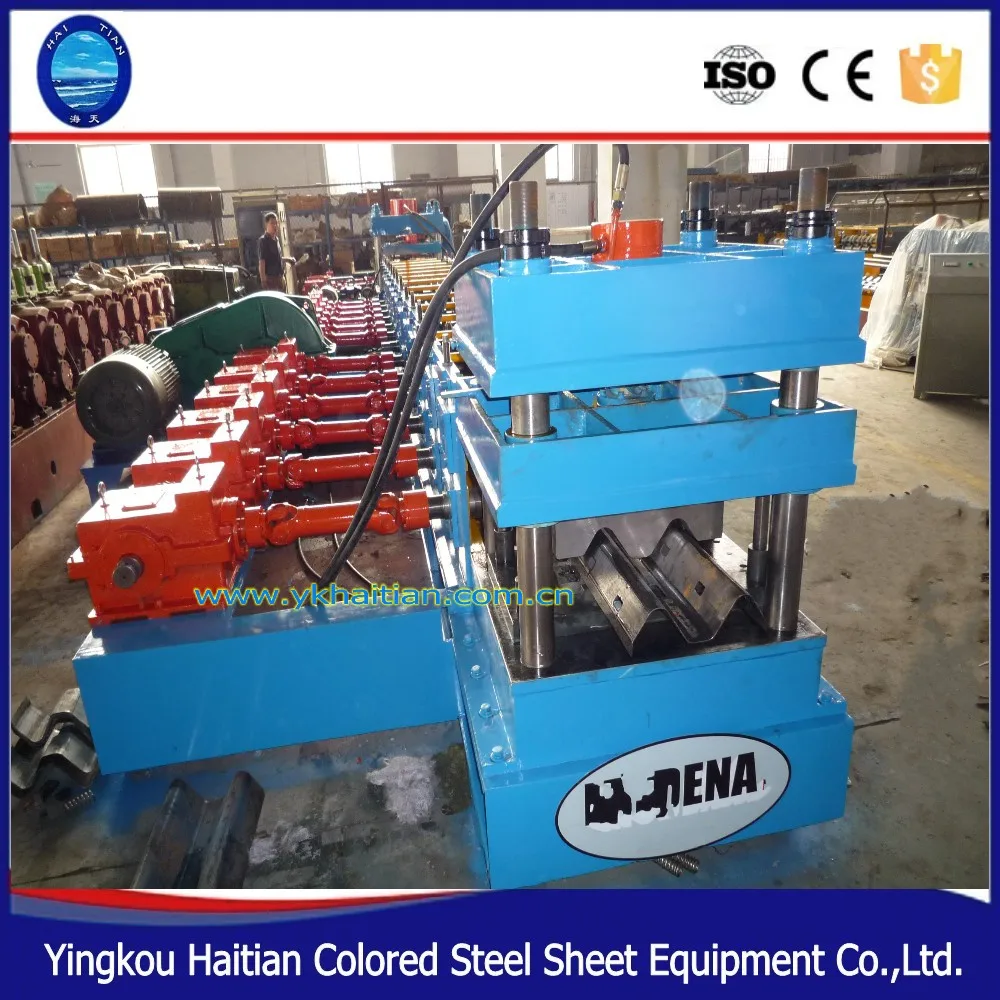

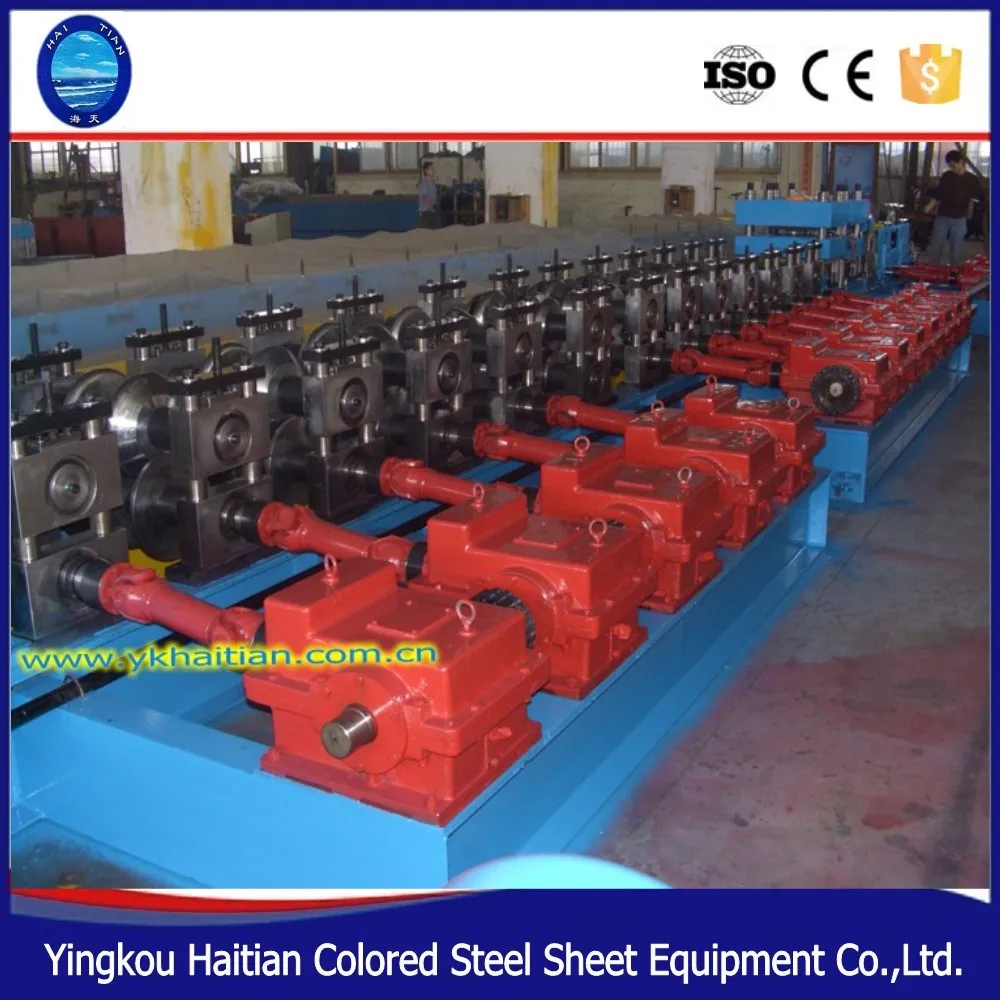

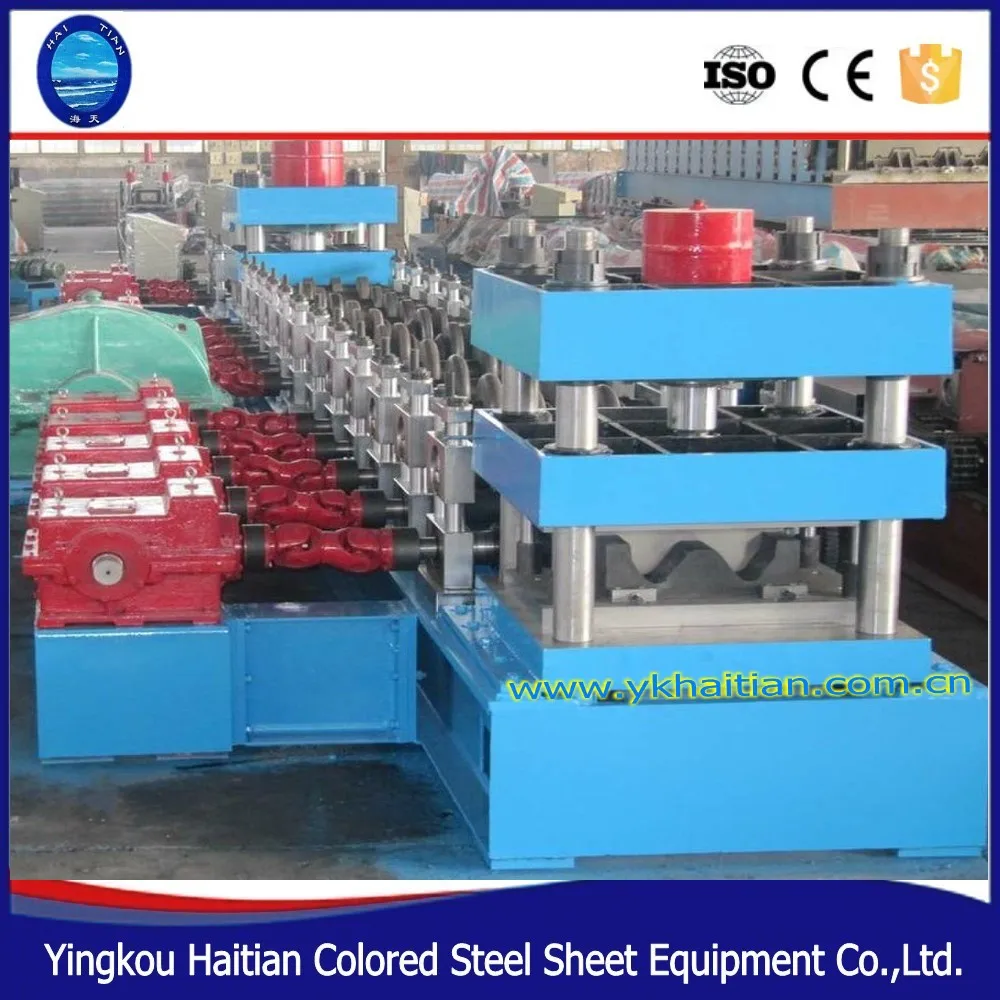

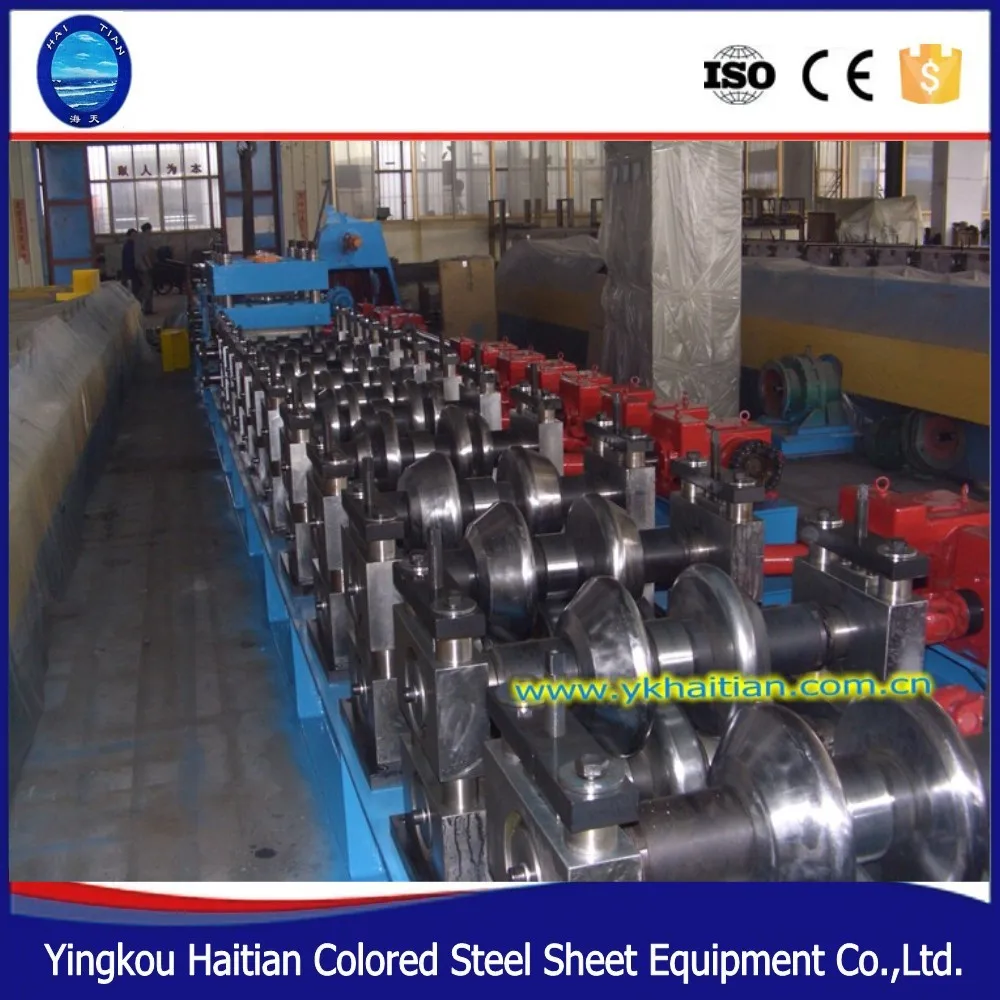

whole machine_conew3.jpg1_conew2.jpgCIMG8616_conew3.jpgCIMG8621_conew3.jpgIMG_2567_conew3.jpg

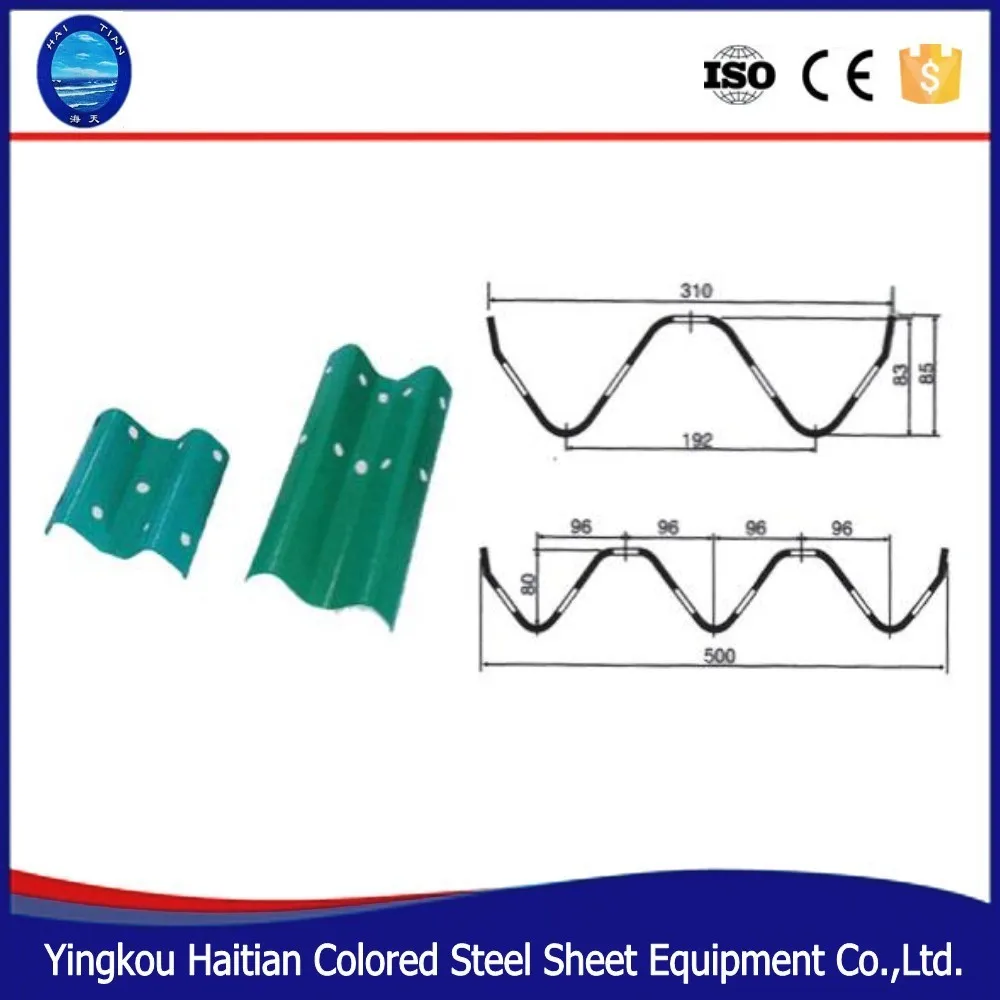

What is the type?
